Styling options for text elements in the texture triangle

Constructs a validated list of label styling overrides for the label_style argument of gg_texture_triangle(). Only specify the arguments you want to change; all others are inherited from the function defaults.

Usage

texture_label_style(
  tick_show = NULL,
  tick_size = NULL,
  axis_show = NULL,
  axis_size = NULL,
  class_show = NULL,
  class_size = NULL
)

Arguments

tick_show

Logical. Show tick-mark percentage labels alongside each edge tick. Default (when omitted): TRUE.

tick_size

Positive numeric. Font size for tick labels. Default: auto- scaled by break density (2.2 / 1.8 / 1.4 for ≤5 / ≤10 / >10 breaks).

axis_show

Logical. Show axis name labels ("Clay (%)" etc.) along each triangle side. Default: TRUE.

axis_size

Positive numeric. Font size for axis name labels. Default: 3.2.

class_show

Logical. Show texture class names inside each polygon region. Default: TRUE.

class_size

Positive numeric. Font size for texture class labels. Default: 2.5.

Value

A named list suitable for passing to the label_style argument of gg_texture_triangle(). Only keys explicitly supplied are included, so the function defaults remain active for anything left unspecified.

Examples

soils <- data.frame(
  sand = c(70, 20, 40),
  silt = c(15, 30, 40),
  clay = c(15, 50, 20)
)

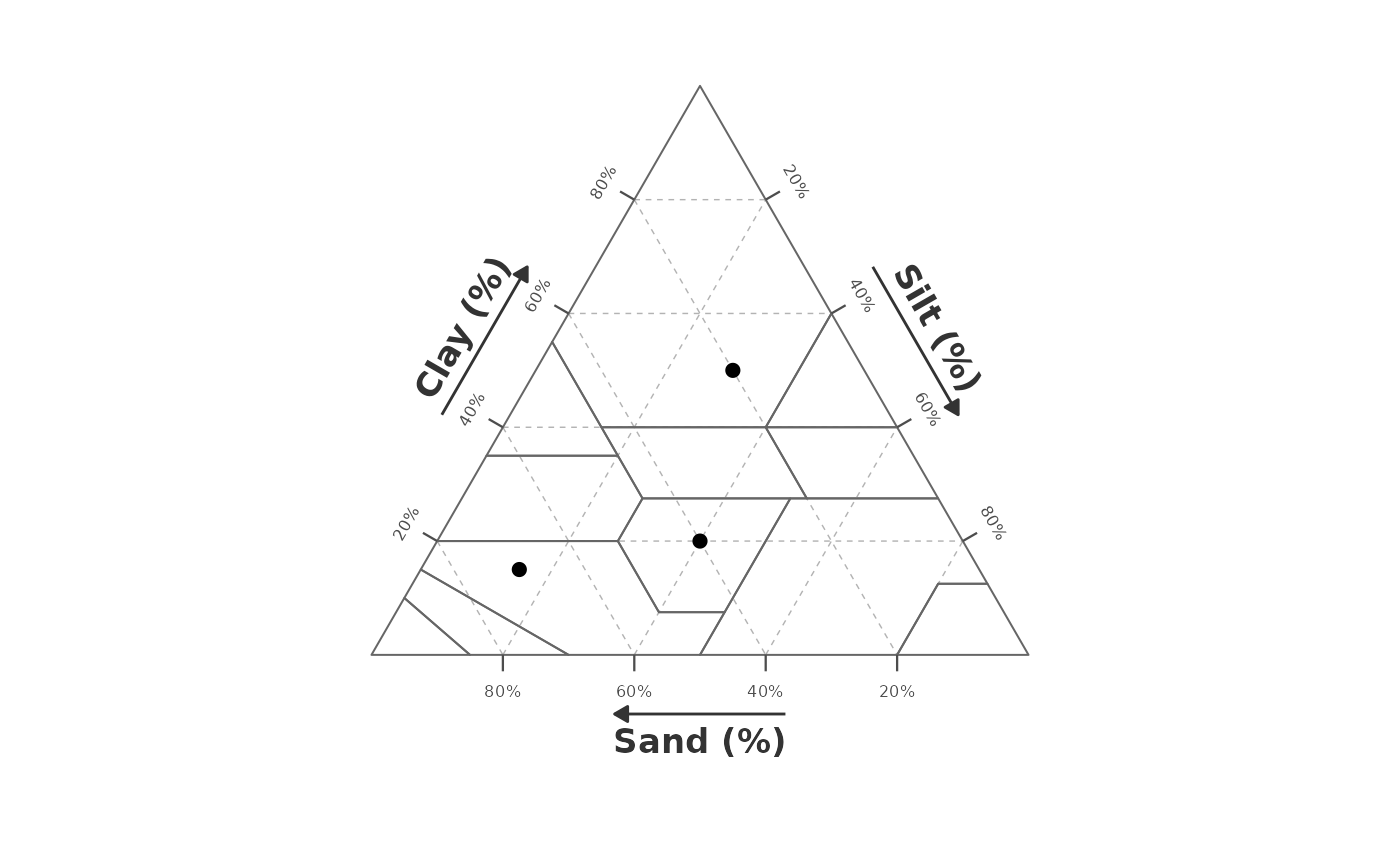

# Hide class names, increase axis label size
gg_texture_triangle(soils, sand, silt, clay,
  label_style = texture_label_style(class_show = FALSE, axis_size = 4.5))

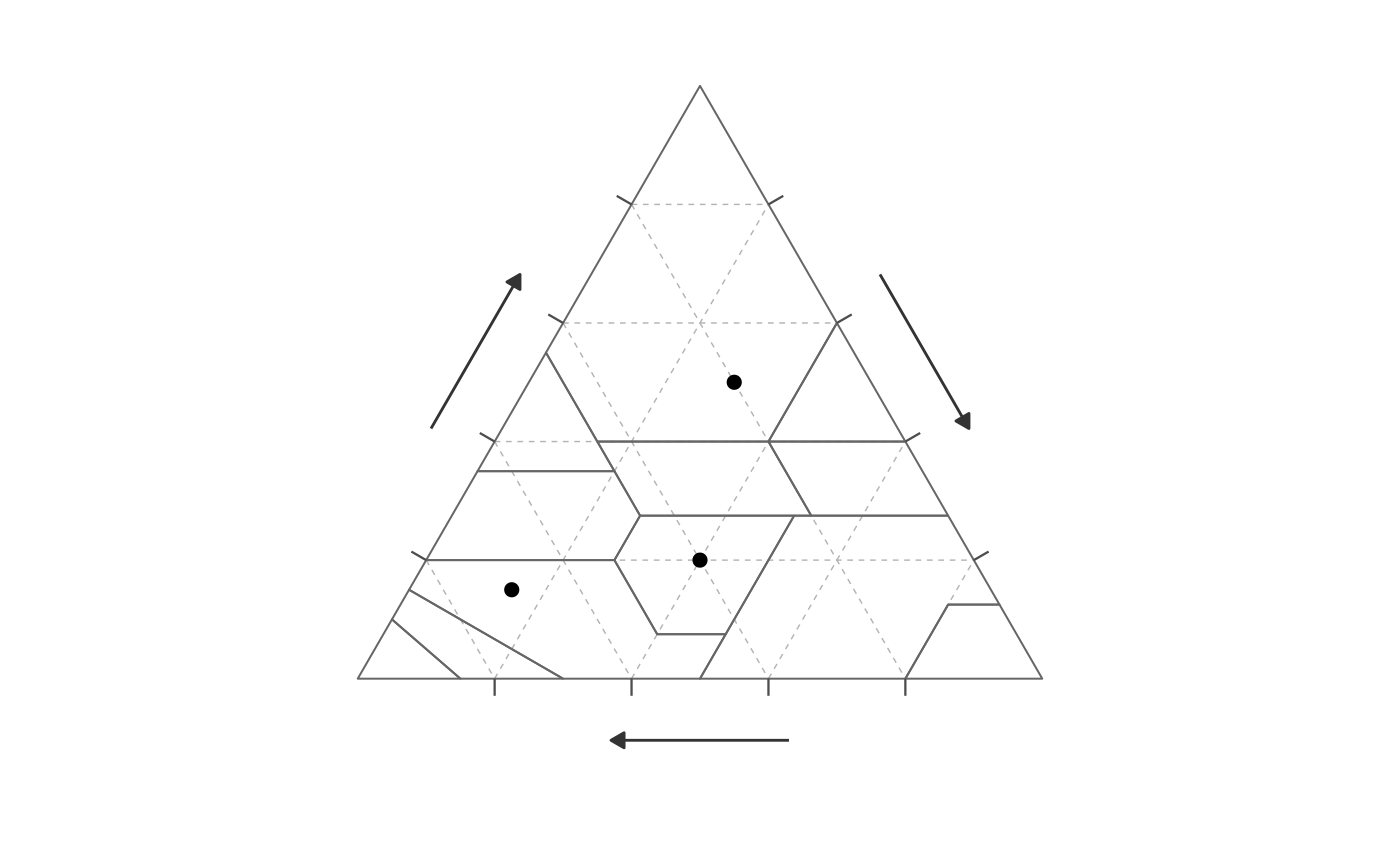

# Bare triangle — only axis arrows remain
gg_texture_triangle(soils, sand, silt, clay,
  label_style = texture_label_style(tick_show = FALSE,
                                    axis_show = FALSE,
                                    class_show = FALSE))
